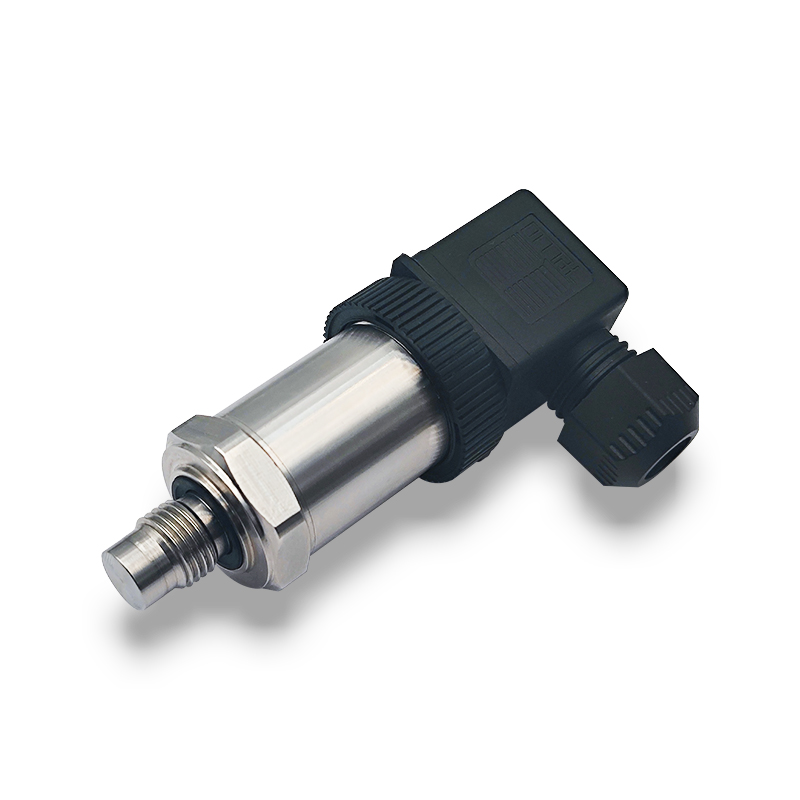

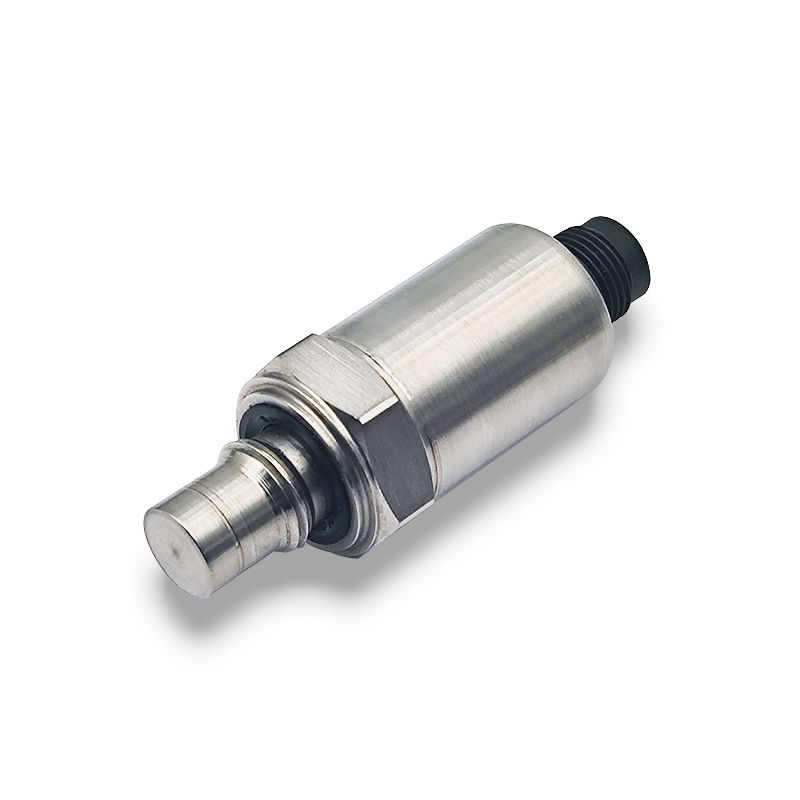

| PARAMETERS | MIN | TYP | MAX | UNITS | NOTES |
|---|---|---|---|---|---|
| Accuracy (combined non linearity, hysteresis, and repeatability) | -0.25 |
±0.25 |
0.25 |
%F.S. BFSL | @ 25°C, > 5.0MPa |
-1 |
±0.5 |
1 |
%F.S. BFSL | @ 25°C, > 5.0MPa | |
| Zero Offset | -0.5 |
|
0.5 |
@ 25°C | |
| Full Scale Error | -0.5 |
|
0.5 |
@ 25°C | |
| Isolation (Body to any Lead) | 1000 | MΩ | @500VDC | ||
Pressure Cycles |
1X107 | 0~FS Cycles | |||
| Proof Pressure | 1.5X | 15k psi | Rated | ||
| Burst Pressure | 2X | 15k psi |
Rated | ||
| Long Term Stability (1 year) | -0.25 | ±0.25 | 0.25 | %F.S | |
| Total Error Band | -1.0 | ±0.5 | 1.0 | %F.S | >5.0MPa |
| -2.0 | ±1.0 | 2.0 | %F.S | >5.0MPa | |
| Compensated Temperature | -10 | 70 | °C | ||
| Operating Temperature | -20 | 120 | °C | Except cable 105°C max | |
| Storage Temperature | -40 | 120 | °C | Except cable 105°C max | |
| Load Resistance (RL) | RL > 100k | Ω | Voltage Output | ||
| Load Resistance (RL) | < (Supply Voltage-9V) / 0.02A | Ω | Current Output | ||
| Current Consumption | 10 | mA | Voltage Output | ||
| Rise Time (10% to 90%) | <2ms (Voltage Output）; <3ms (Current Output); Without Snubber | ||||
| Pressure Port Material | 17-4PH | ||||
| Shock | 50g, 11msec Half Sine Shock per MIL-STD-202G, Method 213B, Condition A | ||||
| Vibration | ±20g, MIL-STD-810C, Procedure 514.2-2, Curve L | ||||
